absoluteBLACK chainring bolts designed for attaching 1x chainrings, but can also be used to attach all other chainrings if suitable.
T30 socket wrench required for tightening. S – short: internal length 5-8 mm (cog and cleat thickness) / bolt diameter 8 mm / cleat external diameter 10 mm – long: internal length 8-12 mm (cog and pawl thickness) / bolt diameter 8 mm / external diameter of counter 10 mm

Short (S – short) length suitable for attaching the following sprockets:

• 104BCD oval 34T and 36T
• 104BCT round 32T 34T 36T and 38T
• 110/4BCD and 110/5 BCD CX oval 38T
• chain guard

“Long” (L) suitable for attaching the following chainrings:

• 110/4 and 110/5 BCD road oval chainrings
• 130/5 BCD road oval chainrings
• 104BCD oval 26T, 28T, and 32T
• 64BCD round chainrings 26T, 28T, and 30T
• 94BCD oval chainrings 30T, 32T, and 34T
• all CX round chainrings

Notes:

• 104BCD 30T oval chainrings come with bolts
• For M8000 and M9000 cranks, use original bolts
• For Sram cranks with oval chainrings, use original bolts
• If you are using an oval sprocket as an inner sprocket on a road crank, use the original bolts.

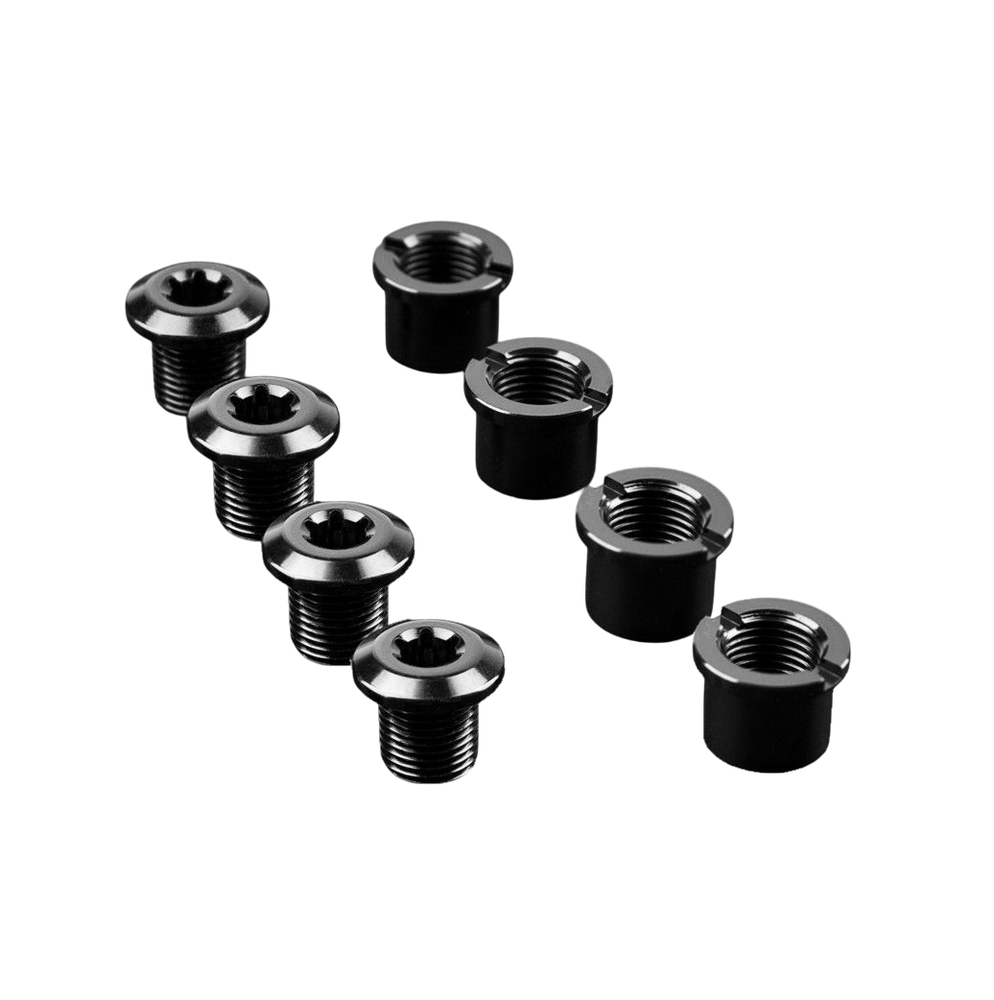

• This product consists of a bolt and a nut. If you need several bolts, order several units.
• The set includes 5 bolts and nuts.

“
