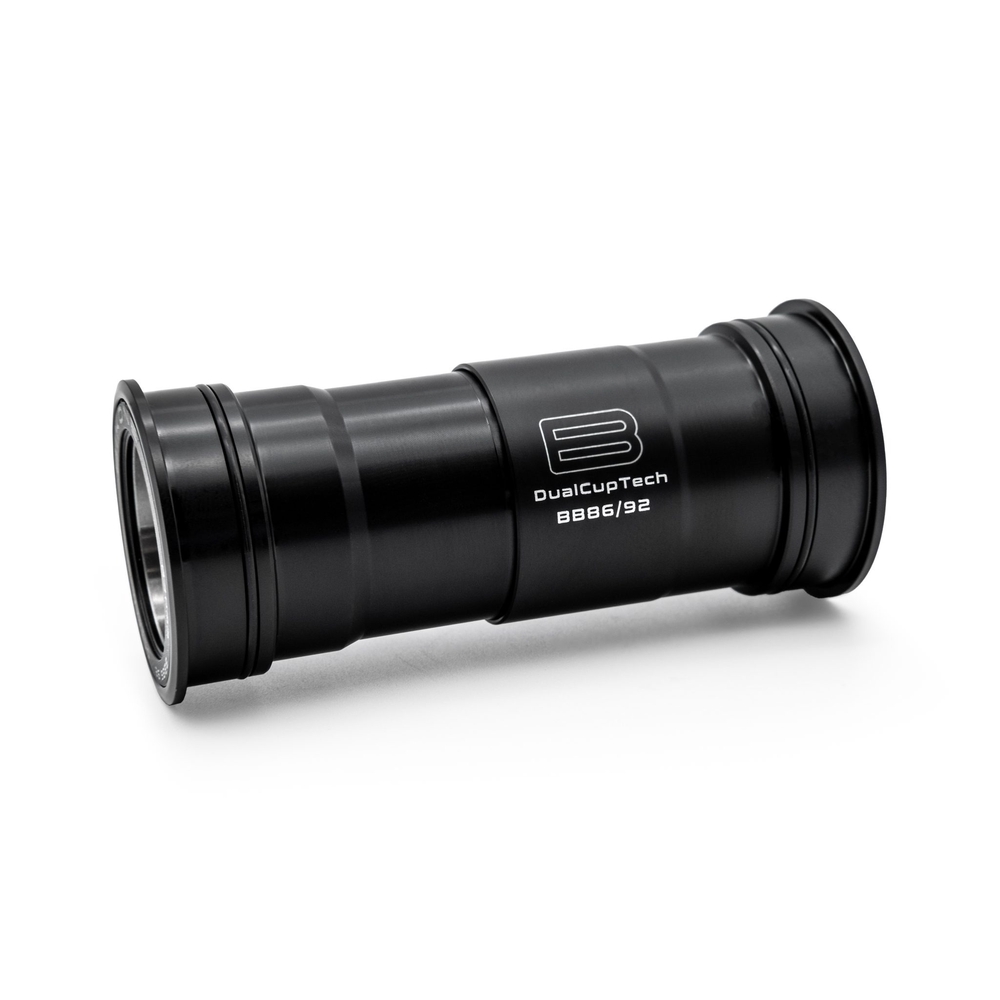

BIKONE DCTech BB86-92 BB30 bottom bracket

• PressFit type, i.e. press-fit bottom bracket
• For use with BB30, i.e. 30 mm axle cranks
• Suitable for both roadand mountain bikes with a frame width of 86.5mm to 92mm (BB86, BB92)
• For frames with a diameter of 41mm
• Installation is easy and does not differ from the installation of other similar bottom brackets; no special tools required

TECHNOLOGIES

• Dual Cup Technology (DCTech) – the two aluminum sleeves of the bottom bracket (one sleeve on each side of the bearing) are self-centering, helping to align the bearings very precisely in the frame, resulting in a perfect fit regardless of external factors. Once installed, the middle race is a rigid link, eliminating play and extraneous noise and ensuring very smooth bearing operation.
• Chronium Steel steel bearings (ABEC5/P5-2RS)
• 7075 aluminum sleeves – a material used in aviation due to its excellent weight-to-strength ratio and durability over time
• T6 heat treatment significantly increases the strength of the material
• Manufactured on a CNC machine for ultimate precision and detail
• Double-sealed bearings

Weight: 83g

Package contains 1x BIKONE DCTech BB86-92 BB30 bottom bracket, without washers.

Product code: 35010160101603
EAN: 8437027270468

Additional information and other useful materials on installation and maintenance can be found on the Bikone website.
