BIKONE DCTech BB86-92 double bottom bracket

• PressFit type, i.e. press-fit bottom bracket
• For use with Sram double, i.e. 29 mm axle cranks (A special adapter is required for Sram double Wide cranks, which is not included in the set!)
• Suitable for both road and mountain bikes with a frame width of 86.5mm to 92mm (BB86, BB92)
• For frames with a diameter of 41mm
• Installation is easy and does not differ from the installation of other similar bottom brackets; no special tools are required

TECHNOLOGIES

• Dual Cup Technology (DCTech) – the two aluminum sleeves (one sleeve on each side of the bearing) are self-centering, helping to align the bearings very precisely in the frame, resulting in a perfect fit regardless of external factors. Once installed, the center race is a rigid link, eliminating play and extraneous noise and ensuring very smooth bearing operation.
• Chronium Steel ball bearings (ABEC5/P5-2RS)
• 7075 aluminum sleeves – a material used in aviation due to its excellent weight-to-strength ratio and durability over time
• T6 heat treatment significantly increases the strength of the material
• Manufactured on a CNC machine for ultimate precision and detail
• Double-sealed bearings

Weight: 86g

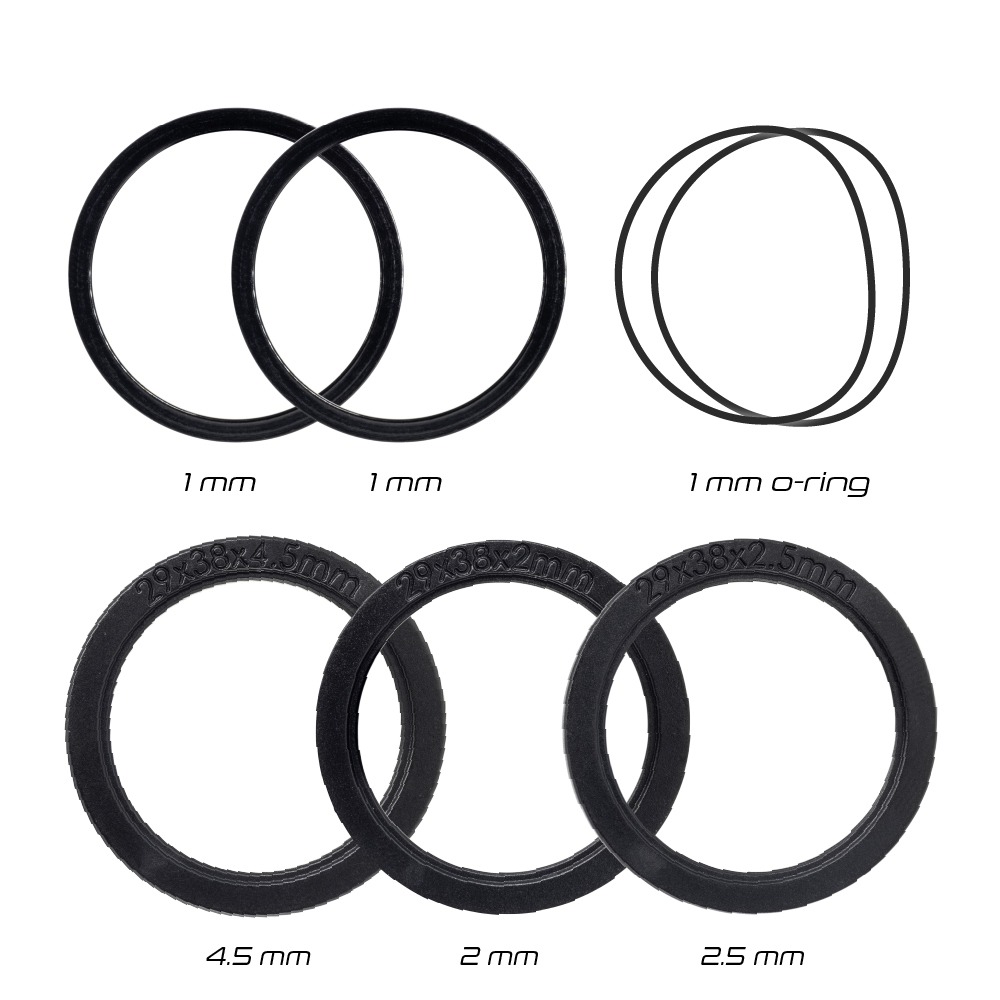

Package includes 1x BIKONE DCTech BB86-92 double bottom bracket, washers and seals.

Product code: 35010153101603
EAN: 8437027270505

Additional information and other useful materials on installation and maintenance on the Bikone website.
