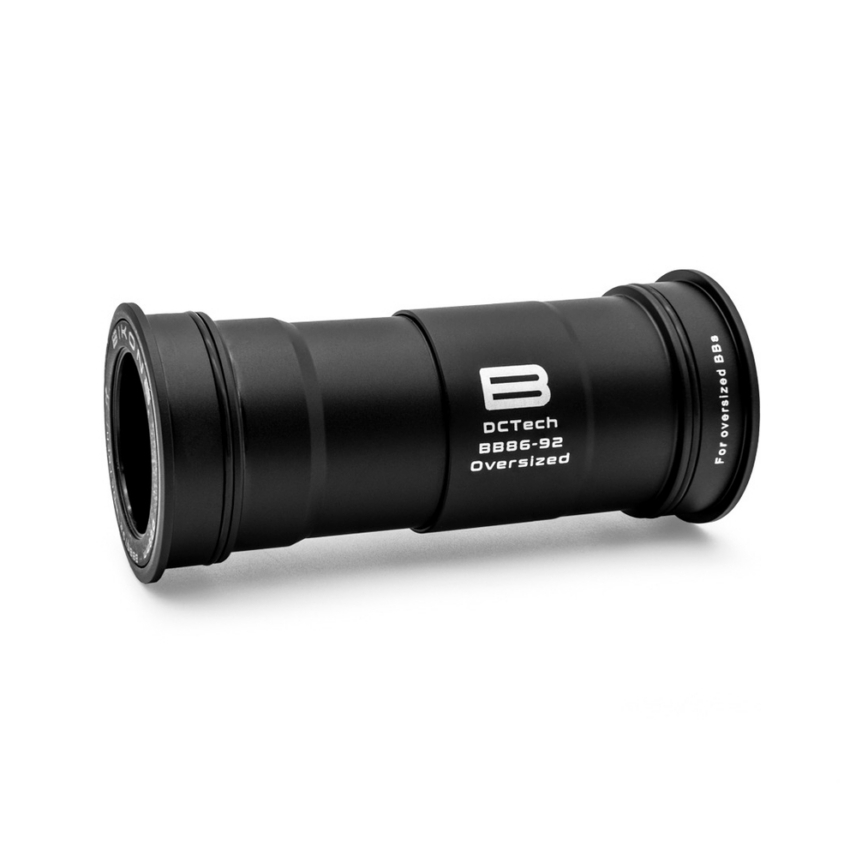

BIKONE DCTech BB86-92 dub OverSize oversized bottom bracket

• PressFit type, i.e. press-fit bottom bracket
• Only for Oversized frames (41.000mm to 41.050mm)
• For use with Sram dub, or 29mm axle cranks (Sram dub Wide cranks require a special adapter that is not included in the set!)
• Suitable for both road and mountain bikes with frame widths from 86.5mm to 92mm (BB86, BB92)
• Installation is easy and does not differ from the installation of other similar bottom brackets; no special tools required

TECHNOLOGIES

• Dual Cup Technology (DCTech) – The bottom bracket’s two aluminum cups (one cup on each side of the bearing) are self-centering, helping to align the bearings very precisely in the frame, resulting in a perfect fit regardless of external factors. Once installed, the bottom bracket is a rigid link, eliminating play and extraneous noise and ensuring very smooth bearing operation. In this case, a standard-sized center race will no longer fit (resulting in unwanted play, rattling, and faster wear of the center race openings), and Bikone Oversized center race bearings should be used.steel bearings (ABEC5/P5-2RS)
• 7075 aluminum sleeves – a material used in aviation due to its excellent properties
• T6 heat treatment significantly increases the strength of the material
• Manufactured on a CNC machine for ultimate precision and detail
• Double-sealed bearings

Weight: 86g

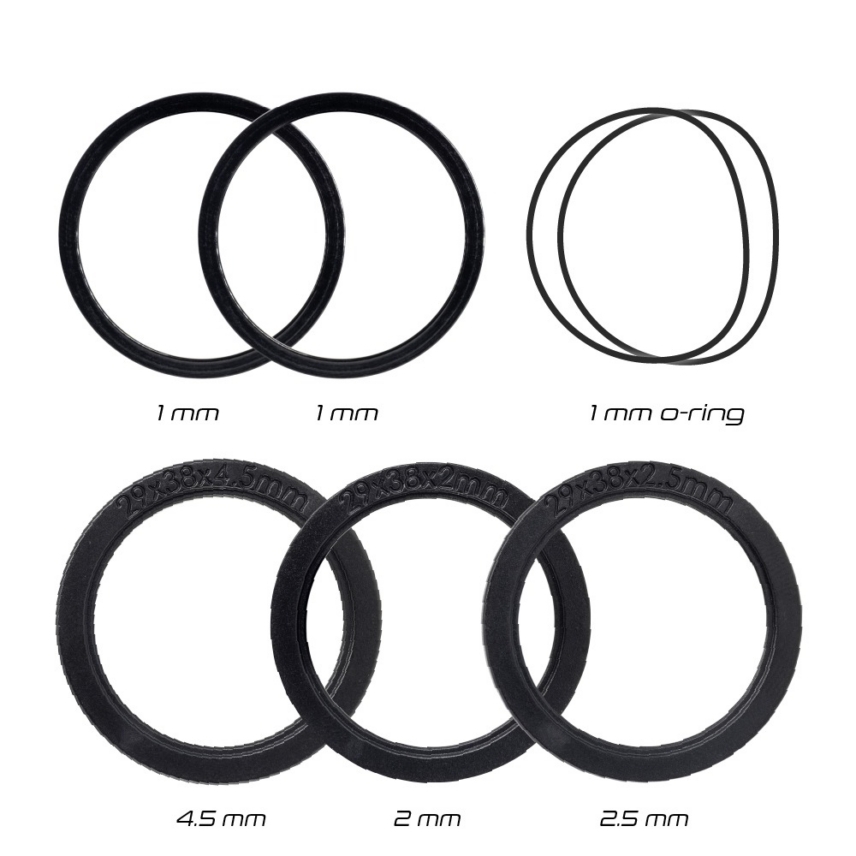

Package includes 1x BIKONE DCTech BB86-92 double OverSize bottom bracket, washers, and seals.

Product code: 35010212001603
EAN: 8437027270499

Additional information and other useful materials on installation and maintenance <a href="https://www.bikone.com/en/product-information/dctech-bb86-92-dub-oversize-bottom-bracket-set-with-washers-and-seals-8nbsp;8437027270499

Additional information and other useful materials on installation and maintenance on the Bikone website.
