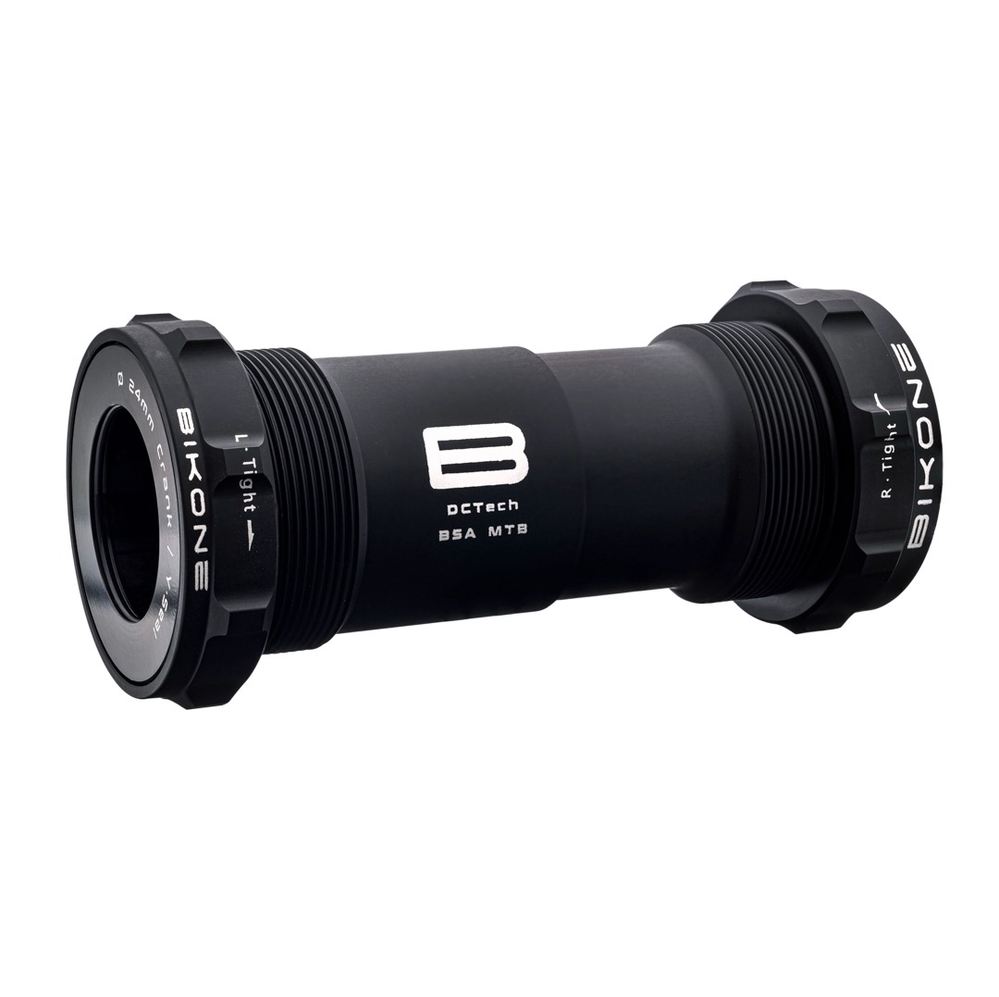

BIKONE DCTech BSA Shimano bottom bracket for mountain bikes

• Threaded bottom bracket
• For use with Shimano, i.e. 24 mm axle
• Suitable for mountain bikes with a frame width of 73 mm
• For frames with BSA threaded bottom brackets
• Easy to install, no different from installing other similar bottom brackets; no special tools required

TECHNOLOGIES

• Dual Cup Technology (DCTech) – The two aluminum sleeves (one sleeve on each side of the bearing) are self-centering, helping to align the bearings very precisely in the frame, resulting in a perfect fit regardless of external factors. Once installed, the center race is a rigid link, eliminating play and extraneous noise and ensuring very smooth bearing operation. This washer-free design makes the center race system more robust.
• Chronium Steel ball bearings (ABEC5/P5-2RS).
• 7075 aluminum sleeves – a material used in aviation due to its excellent weight-to-strength ratio and durability over time.-strength ratio and durability over time
• T6 heat treatment significantly increases the strength of the material
• Manufactured on a CNC machine for ultimate precision and detail
• Double-sealed bearings
• The number of “pins” for use with the center drive tool The number of “pins” has been reduced to reduce the weight of the bottom bracket

Weight: 97g

Package contains 1x BIKONE DCTech BSA Shimano MTB bottom bracket.

Product code: 35010220001603
EAN: 8437027270376

Additional information and other useful materials on installation and maintenance on the Bikone website.
