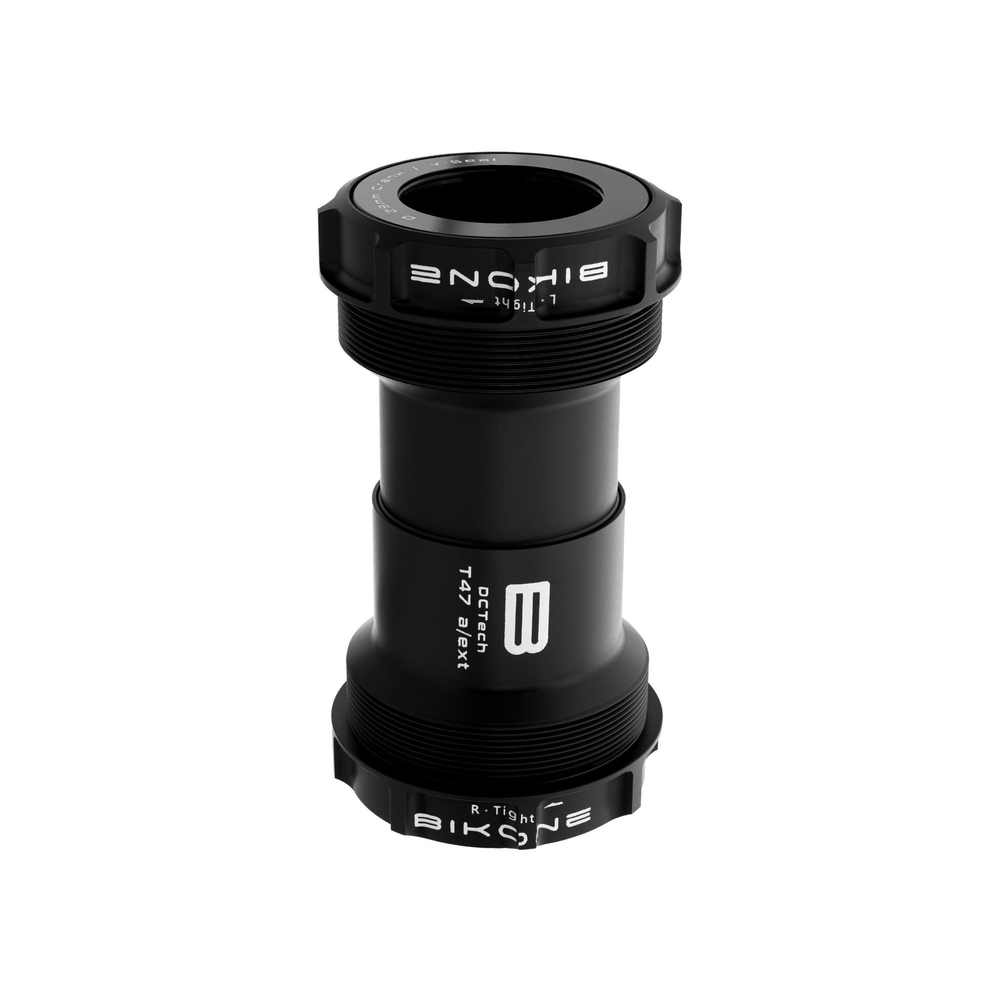

BIKONE DCTech T47 External hub

• Threaded hub
• For use with Sram hubs, i.e. 29 mm axles (Sram dub Wide cranks require a special adapter that is not included in the set!)
• Suitable for bikes with a frame width of 68mm to 73mm
• For T47 standard frames
• Installation is easy and does not differ from the installation of other similar bottom brackets; no special tools are required

TECHNOLOGIES

• Dual Cup Technology (DCTech) – The two aluminum sleeves (one sleeve on each side of the bearing) of the bottom bracket are self-centering, helping to align the bearings very precisely in the frame, resulting in a perfect fit regardless of external factors. Once installed, the center race is a rigid link, eliminating play and extraneous noise and ensuring very smooth bearing operation.
• Steel bearings (ABEC5/P5-2RS)
• 7075 aluminum sleeves – a material used in aviation due to its excellent properties.
• T6 heat treatment significantly increases the strength of the material.
• Manufactured on a CNC machine for ultimate precision and detail.
• Double-sealed bearings.
• The number of “pins” for use with the center drive tool has been reduced to reduce the weight of the center drive

Weight: 140g

Package includes 1x BIKONE DCTech T47 External dub center drive, washers, and seals.

Product code: 35010265001603
EAN:

Additional information and other useful materials on installation and maintenance on the Bikone website.
