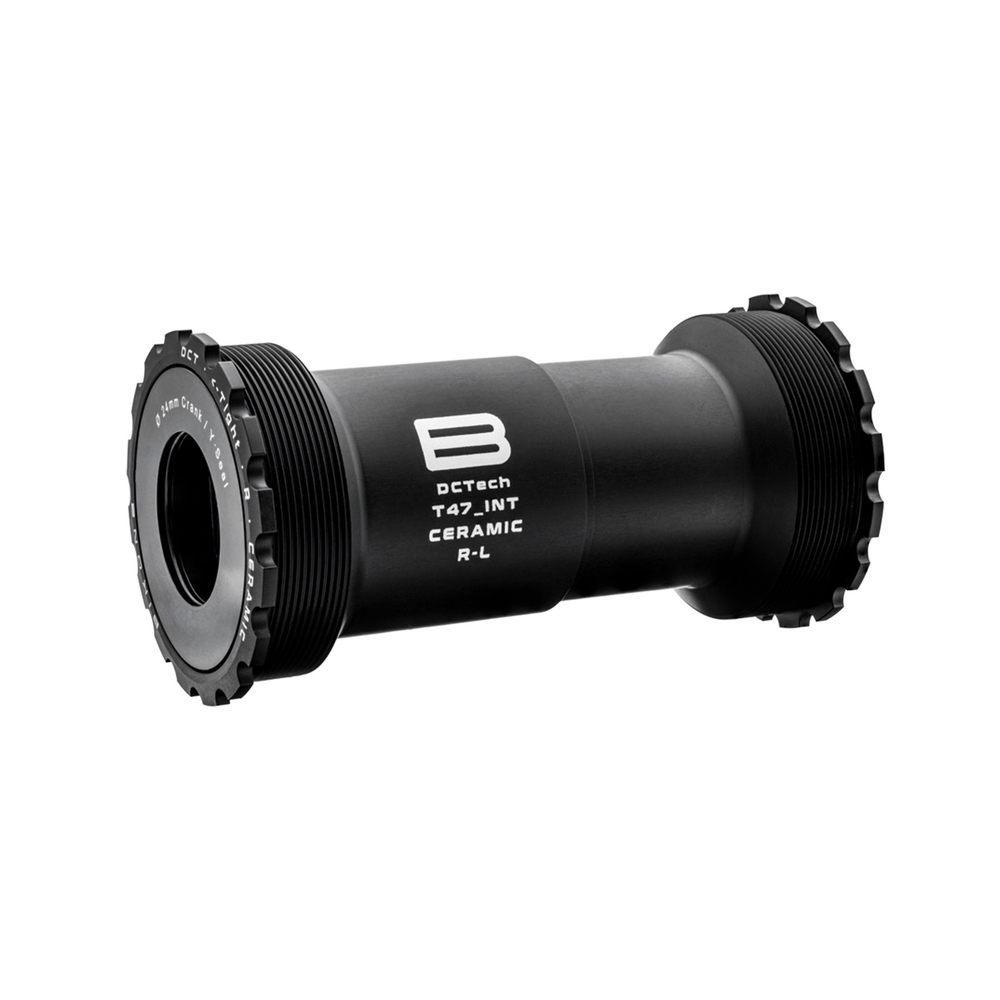

BIKONE DCTech T47 Internal Shimano ceramic bearing bottom bracket

• Threaded bottom bracket
• For use with Shimano, or 24 mm axle cranks
• Suitable for both roadand mountain bikes with frame widths from 85.5mm to 92mm
• For T47 standard frames
• Installation is easy and does not differ from the installation of other similar bottom brackets; no special tools required

TECHNOLOGIES

• Dual Cup Technology (DCTech) – The two aluminum sleeves (one sleeve on each side of the bearing) are self-centering, helping to align the bearings very precisely in the frame, resulting in a perfect fit regardless of external factors. Once installed, the middle race is a rigid link, eliminating play and extraneous noise and ensuring very smooth bearing operation.
• 6061 aluminum sleeves – a material used in aviation due to its anti-corrosion properties
• T6 heat treatment significantly increases the strength of the material
• Manufactured on a CNC bench for ultimate precision and detail
• Double-sealed bearings
• The number of “pins” for use with the middle drive tool has been reduced to reduce the weight of the middle drive

Weight: 113g

Package contains 1x BIKONE DCTech T47 Internal Shimano Ceramic middle drive.

Product code: 35010164101603
EAN: 8437027270185

Additional information and other useful materials on installation and maintenance <a href="https://www.bikone.com/en/product-information/dctech-t47-internal-shimano-ceramic-bottom-bracket"nbsp;8437027270185

Additional information and other useful materials on installation and maintenance on the Bikone website.
