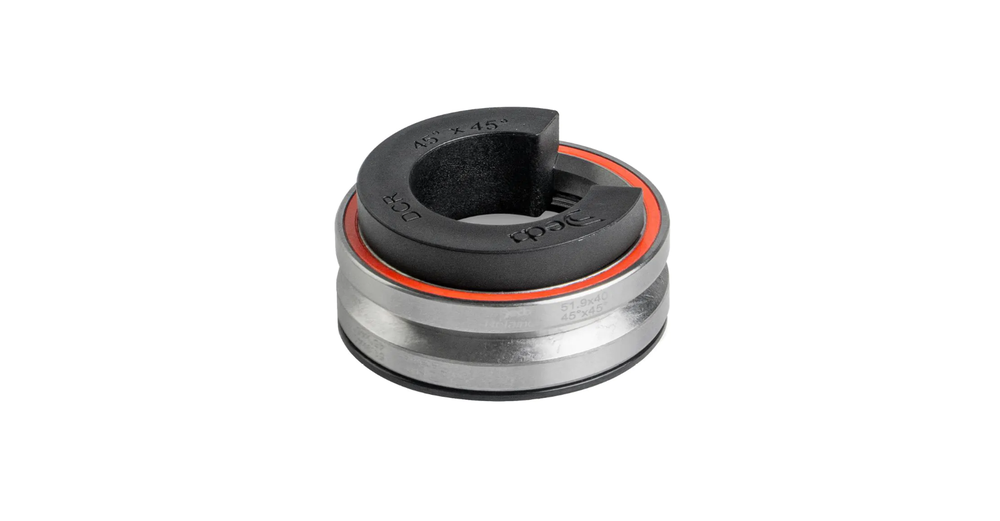

Deda DCR integrated headset 1.5 inches

Product code: HDDCR

Special headset bearings that allow for complete cable integration through the handlebars and stem directly into the head tube. Such integration is not possible with conventional bearings!

69.90 €

In stock: 1 product

Delivery time: We ship out the same or next business day.

[esto_monthly_payment]

Only 1 left in stock (can be backordered)

Deda DCR integrated headset bearings allow you to keep the front of the bike completely clean (clean look).

  • DCR (Deda internal Cable Routing) bearings are suitable for use with Vinci, Alanera and SUPERBOX stem extensions
  • 1-1/8 inch – 1.5 inch standard tapered steerers
  • A special compression ring leaves enough space for cables between the bearing and the fork
  • The upper bearing cap is not included in the set, but can be purchased separately
  • Weight: 80g

Technical data:

  • Integrated 1.5 inch – 1.5 inch
  • Bearing type: ACB (Angular Contact Bearing), steel bearings
  • Bearing dimensions:
    • Top: 51.9x40x8mm
    • Bottom: 51.9x40x8mm
  • Contact angle:
    • Upper: 45°×45°
    • Lower: 45°×45°
  • Headtube: ø 56.0mm
  • Steerer: tapered 1 1/8 (28.6mm) – 1.5(38.10mm)
  • Upper cap: ø 56mm
  • Crown: ø 39.8mm aluminum
  • Stack: 9.6mm

Spetsifikatsioon tootele Deda DCR integrated headset 1.5 inches:

Brand Deda Elementi
