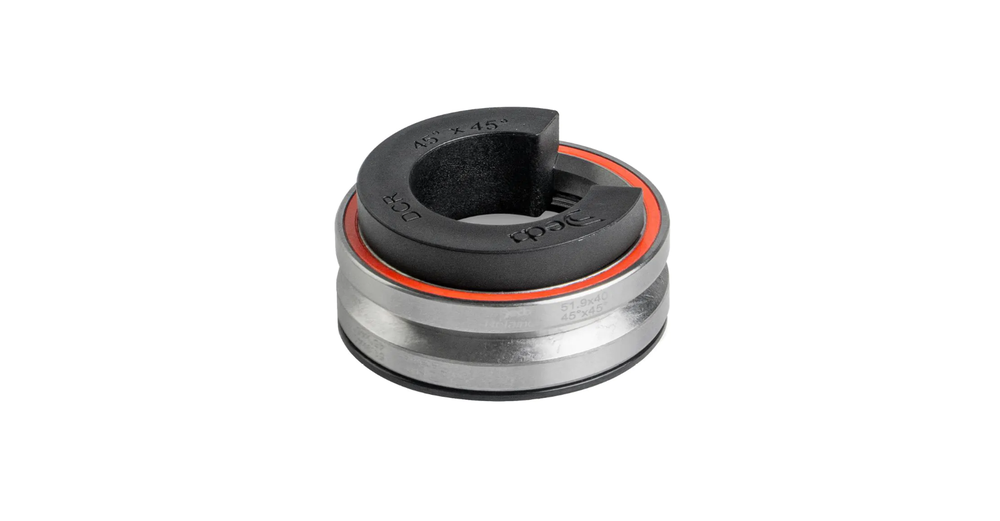

Deda DCR integrated headset 1.5 inches
Product code: HDDCR
Special headset bearings that allow for complete cable integration through the handlebars and stem directly into the head tube. Such integration is not possible with conventional bearings!
69.90 €
In stock: 0 products
Delivery time: The product will arrive at our warehouse in 1-5 business days.
[esto_monthly_payment]
Available on backorder
Deda DCR integrated headset bearings allow you to keep the front of the bike completely clean (clean look).
- DCR (Deda internal Cable Routing) bearings are suitable for use with Vinci, Alanera and SUPERBOX stem extensions
- 1-1/8 inch – 1.5 inch standard tapered steerers
- A special compression ring leaves enough space for cables between the bearing and the fork
- The upper bearing cap is not included in the set, but can be purchased separately
- Weight: 80g
Technical data:
- Integrated 1.5 inch – 1.5 inch
- Bearing type: ACB (Angular Contact Bearing), steel bearings
- Bearing dimensions:
- Top: 51.9x40x8mm
- Bottom: 51.9x40x8mm
- Contact angle:
- Upper: 45°×45°
- Lower: 45°×45°
- Headtube: ø 56.0mm
- Steerer: tapered 1 1/8 (28.6mm) – 1.5(38.10mm)
- Upper cap: ø 56mm
- Crown: ø 39.8mm aluminum
- Stack: 9.6mm
Spetsifikatsioon tootele Deda DCR integrated headset 1.5 inches:
| Brand | Deda Elementi |
|---|
