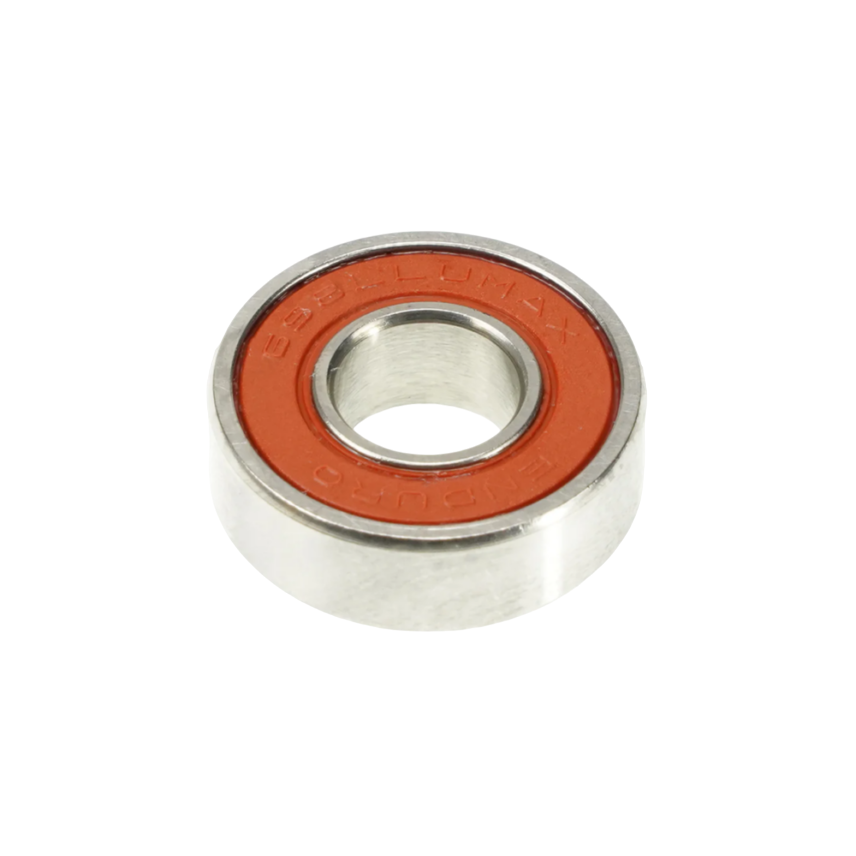

Enduro 698 LLU MAX bearing 8x19x6mm

This bearing has been used as a suspension pivot bearing by a number of bicycle brands including Rocky Mountain.

MAX-type bearings provide 35-40% more load capacity than standard radial bearings by utilizing a special design where the maximum number of balls are inserted into the bearing, via a custom ground slot in the races. The additional balls, combined with deep race grooves in these bearings provide greater lateral support for the twisting and multi-directional forces associated with mountain bike pivots. This bearing features deep-groove design races, with grade 10 balls and full-contact, double-lip, labyrinth (LLU) seals for maximum protection against the elements, while keeping the 90% fill of Almagard extra high pressure grease inside.

Static load – 355lbf / 1.58kN
Weight – 7.12g

Product code: 698LLUMAX
