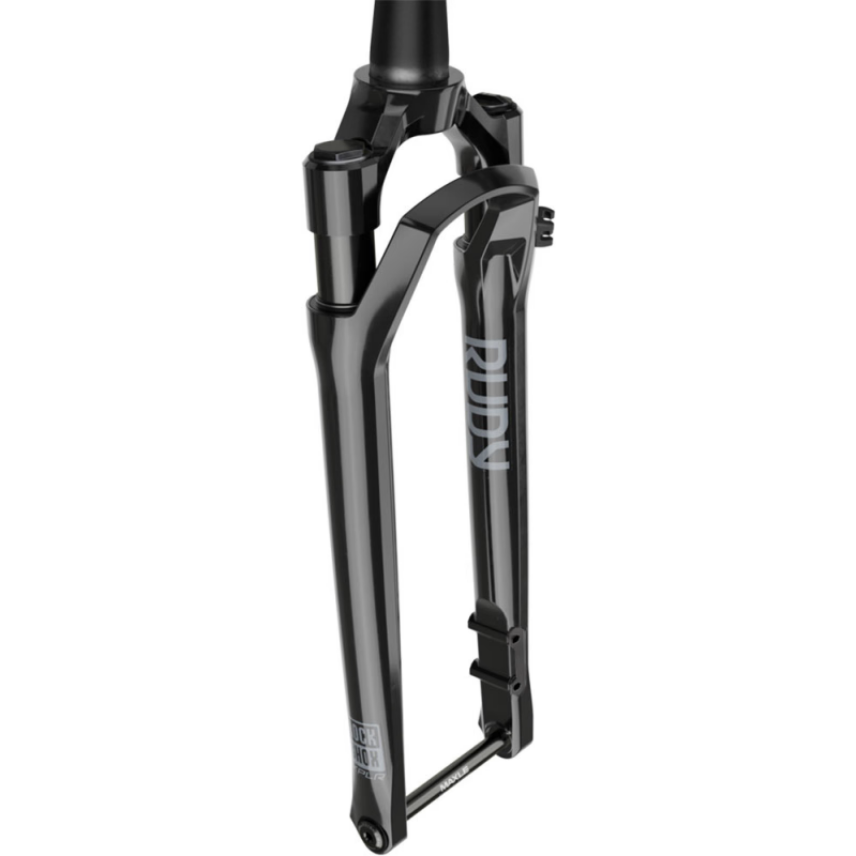

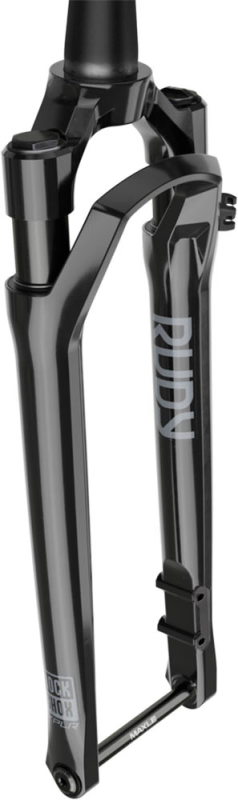

RockShox Rudy Base XPLR 28″ Solo Air 40 Tapered Gravel Suspension Fork

The RockShox Rudy Base XPLR is a suspension fork specifically designed for gravel bikes, offering precision and comfort on uneven terrain. The Rudy is an ideal addition to a modern gravel bike, dampening vibrations and impacts that would otherwise be transferred to the hands, while simultaneously improving front-wheel traction and handling.

The fork is built with Solo Air™ spring system, which is lightweight and easily adjustable according to the rider’s weight. This model is optimized for 28-inch (700c) wheels and provides ample clearance for wide tires, making the ride stable and controlled even on the most challenging gravel roads.

• Solo Air™ spring: An easily adjustable and lightweight system that offers smooth travel throughout the 40 mm range
• Gravel-specific design: Optimized stiffness-to-weight ratio, ideal for bikes transitioning from road to off-road
• Accommodates wide gravel tires, ensuring better comfort and capability
• Tapered steerer adds stiffness and precision during cornering
• Maxle Stealth 12×100 axle

Technical Specifications:

• Wheel size: 28″ (700c)
• Travel: 40 mm
• Stanchions: 30 mm
• Type: Solo Air, Cartridge – Rebound Only
• E-bike ready: Yes
• Steerer: Tapered (1 1/8″ – 1.5″), 310 mm
• Axle: 12×100 mm Maxle Stealth
• Brake mount: Flat Mount
• Maximum rotor size: 180 mm
• Maximum tire width: 50 mm
• Offset: 51 mm
• Maximum system weight: 135 kg
• Weight: approx. 1315 g

Kit includes: 1x RockShox Rudy Base XPLR fork, 1x Maxle Stealth thru-axle.

Note: Star nut and Flat Mount mounting bolts are not included.

Product code: 00.4020.732.000
