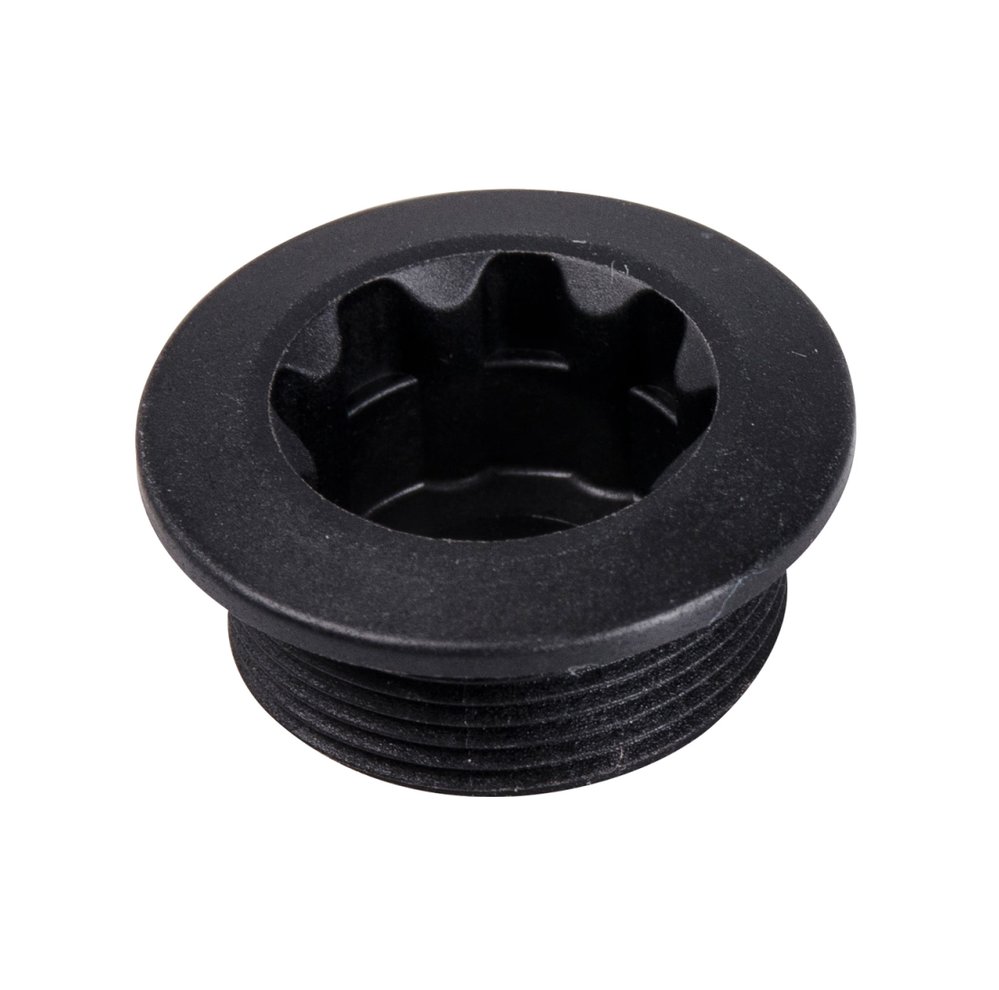

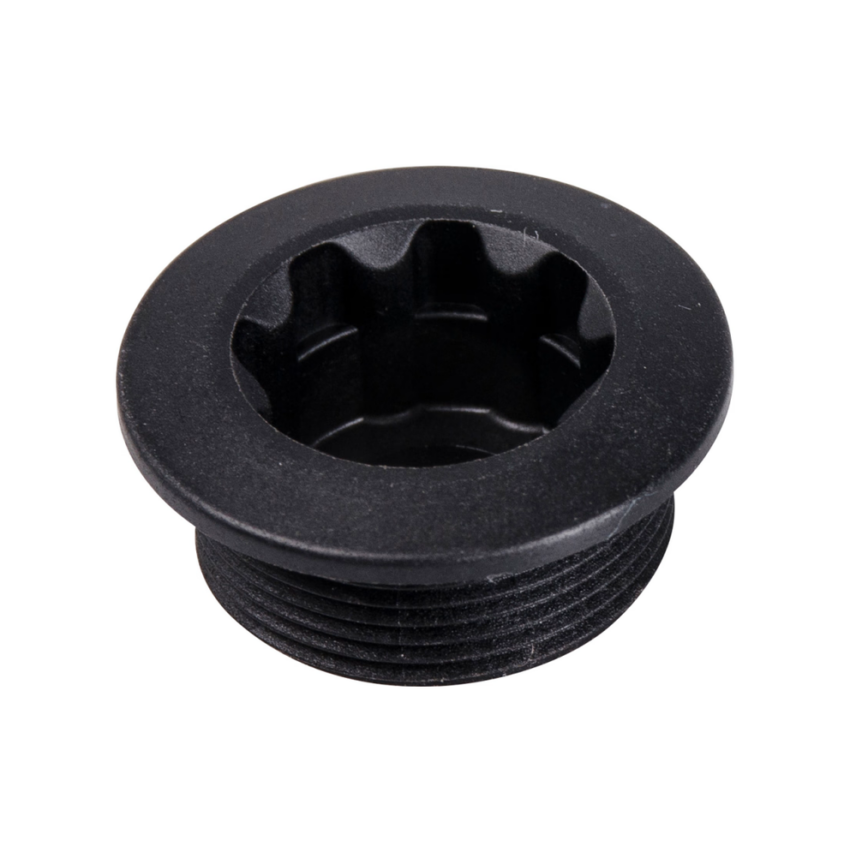

Shimano Crank Arm Fixing Bolt

This genuine Shimano spare part is designed for attaching the left crank arm on Hollowtech II system cranksets. The bolt helps securely fix the crank to the end of the axle and ensures correct pre-tensioning of the system before the crank arm’s pinch bolts are tightened.

Made from high-quality plastic, this bolt is durable and precision-engineered to fit Shimano road and mountain bike cranksets, ensuring long-term reliability and a correct fit.

• Genuine spare part – ensures 100% compatibility and compliance with Shimano quality standards
• Suitable for a wide range of Shimano series, including Ultegra, 105, and LX
• Requires a standard Shimano crank cap tool (e.g., TL-FC16) for installation

Technical Specifications:

• Material: Plastic
• Thread type: Shimano standard crank fixing thread

Compatible Models:

• Ultegra FC-6700 / FC-6750 / FC-6703
• 105 FC-5700 / FC-5750 / FC-5703
• LX FC-T661 / FC-T671
• Deore FC-T611
• Tiagra FC-4600 / FC-4650 / FC-4603
• Sora FC-3550 / FC-3503
• Alfine FC-S501
• FC-R601
• FC-R350
• FC-RS500
• FC-CX50
• FC-T4060

Kit includes: 1x Shimano crank arm fixing bolt.

Product code: Y1KS13000
